Description

12 bit coded Remote control compatible to all DUCATI automation gate & garage door openers manufactured between 2001-2015 compatible to all Ducati's fix coded
gate & garage door openers manufactured since 2001

Warning: not compatible with today's Ducati openers witch are all rolling coded!

Features

INSTRUCTIONS:

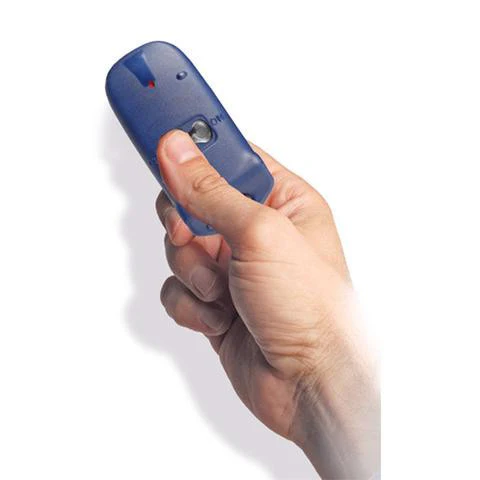

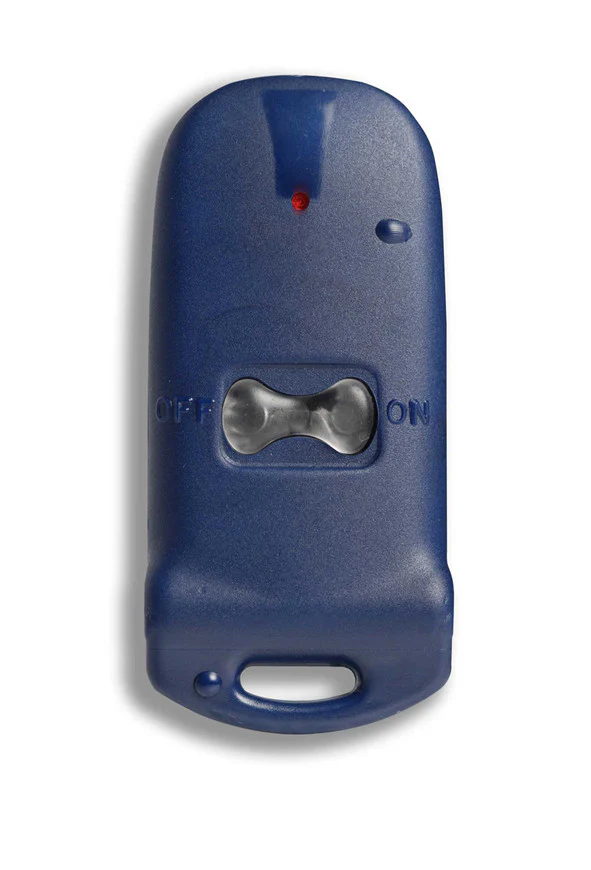

Remote control 6203 is a 12 bit coded remote control 433 Mhz. It comes with blue plastic case , and transparent light gray push buttons ( previous versions also in see-through plastic case).

It has 3 channels of transmission. one channel is pushing button “ON” , second channel is button “OFF” and the third channel by pushing buttons “ON” +“OFF” together.

The push buttons are pre-coded in by manufacturer for a standard use as follows:

1° channel of transmission = push button “Off” is coded for Gate operators

2° channel of transmission = push button “On” is coded for Garage operator

3° channel of transmission = ON+OFF at the same time, to be used for any other operator

As you purchase your operator, after having installed it and tested with standard codes on your remote, we recommend to delate all standard codes from your remote and your electronic panel memory and to set and memorize a new private secret code to prevent others customers from opening your garage or gate.

Technical Data

TECHNICAL DATA

Working frequency:433,92MHz
Transmission Channels: 2
Radio code protocol: DUCATI's rolling code
EN tested & certificated to comply R&TTE ETSI EN300 220-2 norms CE 0681 !
USA tested & certified FCC ID:OLS137925764 (# 6203)

To set a new code in the remote transmitter follow this procedure:

Press the remote transmitter ON and OFF buttons at the same time until the Led goes on with fixed light.
Release the keys, the Led goes off. Now the remote transmitter is in the programming function.
Press and release the push button corresponding to the channel to be programmed (ex. ON , OFF or ON +OFF), the Led goes on for approx. one second.
Now enter a personal 12 bits code by pressing OFF ON buttons for 12 times composing your 12-pulse personal coding string you had previously marked. After each pulse wait until the led goes on and then off.

If you have not entered all the set 12 codes, the remote transmitter will stay in the "programming". ALL THE 12 CODES HAVE NECESSARILY TO BE ENTERED ALSO IN CASE OF ERROR DURING PROGRAMMING. To carry out a new programming repeat the instruction from point 1.

After having reached the thirteenth pulse, the remote transmitter will blink quickly various times, which means the new programming has been accepted. If this would not occur, repeat the operation from point 1.

Important : we recommend to copy your personal code string to avoid loosing it

How to set the new transmitter code of your remote control in the electronic board of your opener: "SELF-LEARNING" function

Caution: first of all clear the pre-coded standard code by pressing and holding pressed the P1 key on your opener electronic board for 20 seconds until the red led blinks. this procedure will delate all codes previously memorized in the electronic board of your opener. Then:

Press the P1 push button (one time only!) on your opener electronic board the red Led light will switch on
Release P1
Press the push button the remote transmitter where you have programmed your personal code for some seconds, or even several times until the opener start to work. The receiver of electronic board has memorized your remote control 12 bit code.

REMOTE CONTROLS

Tasty 6700

Tasty 6704

SW6500

SW6504

WiFi 6090 4CH

PULT 6203P (Rolling)

PULT 6203 (12Bit Fix)

PULT 6208 (Rolling)

PULT 6203 N

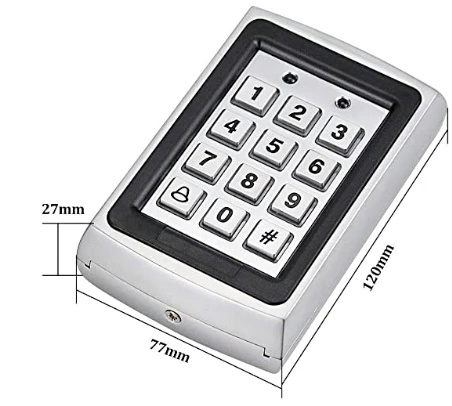

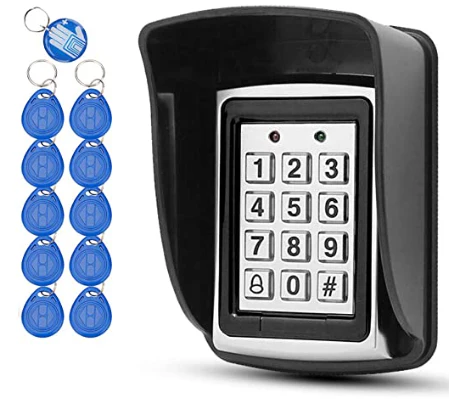

TASTY 5005

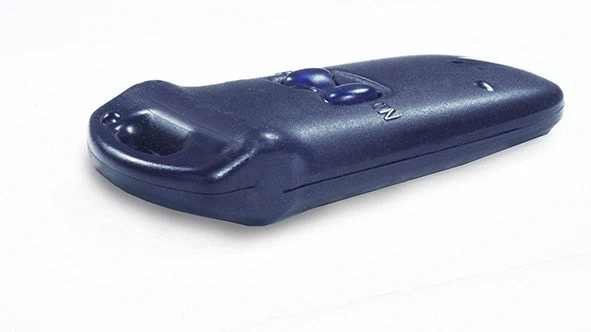

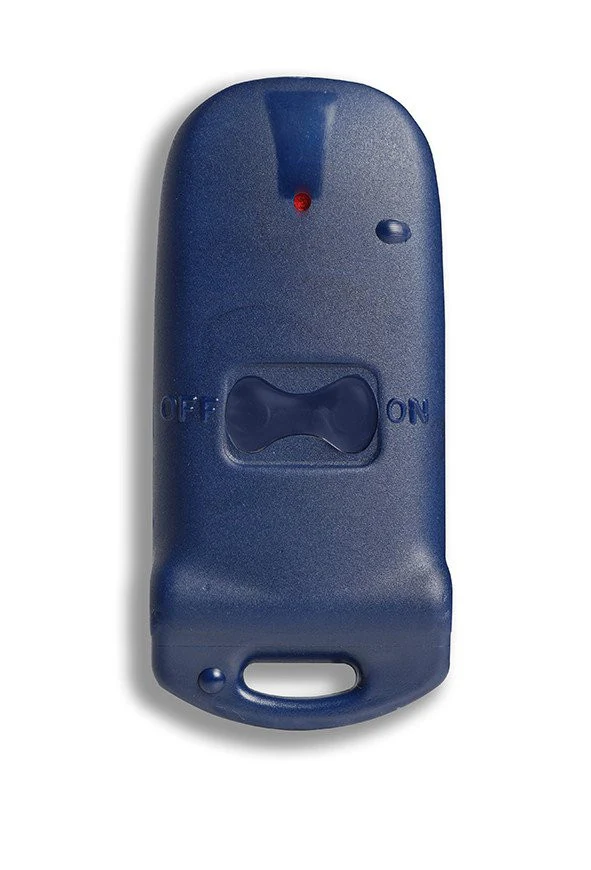

PULT 6203 R
